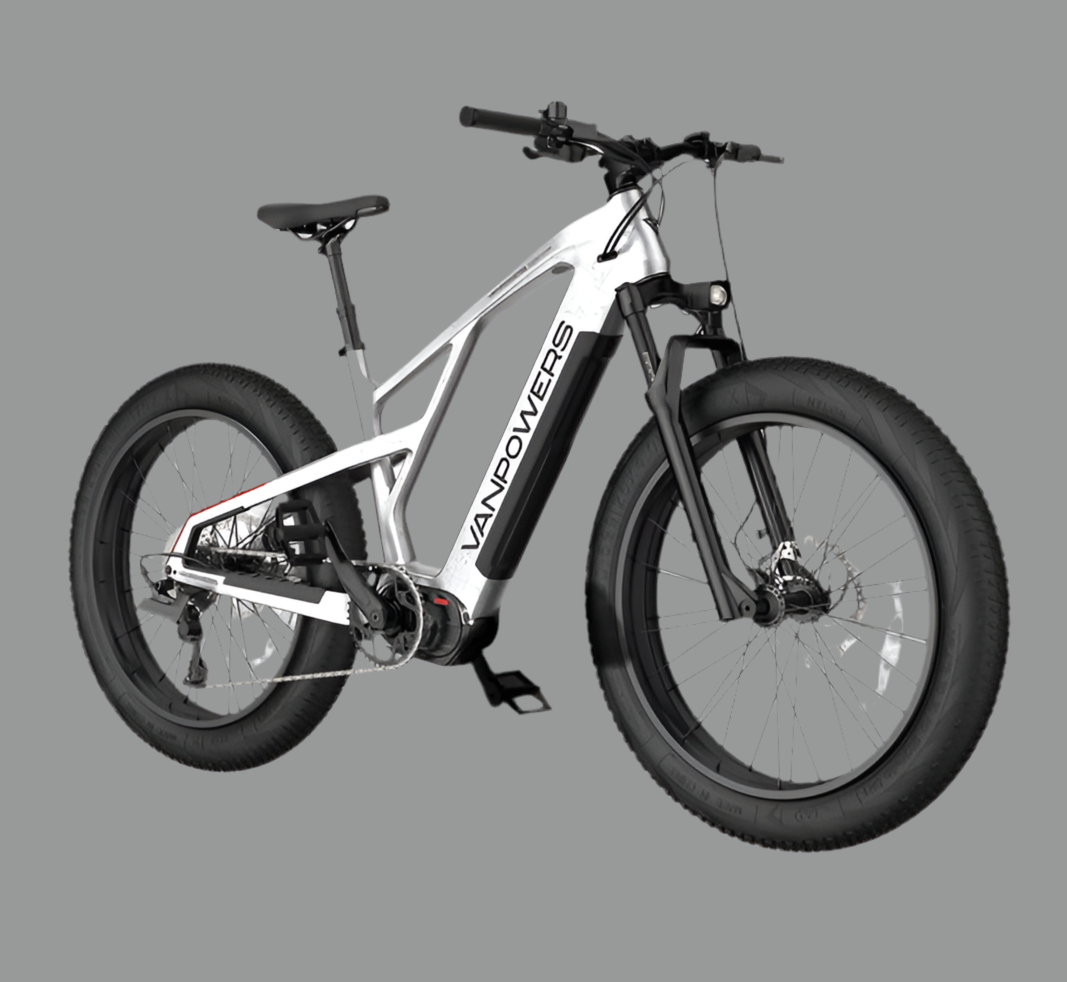

GrandTeton-Ultra
GrandTeton-Ultra
Couldn't load pickup availability
GrandTeton-Ultra
Performance
Assist Speed
20 Mph
Range
65 Miles
Weight
70 Lbs (32.1 Kg)
Maximum Load Capacity
400 Lbs (181 Kg)
Electronics
Motor
Ananda@ M100 48V/500W (Peak 750W)Mid Drive Motor, 130Nm
Sensor
Torque Sensor
Battery
48V 14.7Ah Removable Lithium-ion Battery, LG/Samsung Cells
Charger
54.6V/3A Fast Charger
Display
1.9 Color TFT-LCD Display Adaptive Brightness, Bluetooth
Throttle
None
Front Light
High Beam/Low Beam
Tail Light
Constant Illumination / Brake Flashing
APP
VanLife App
Smart System (TBox)
Yes
Size & Fit
|
A |
Seat Tube Length (S/T) |
460 |
|
B |
Top Tube Length Horizontal (T/T") |
648 |
|
C |
B.B.Drop |
60 |
|
D |
Head Tube Length (H/T) |
140 |
|
E |
Seat Tube Angle (S/A) |
73.5 |
|
F |
Head Tube Angle (H/A) |
68 |
|
G |
Rear Wheel-to-Center (R/C) |
490 |
|
H |
Front Wheel-to-Center(F/C) |
760 |
|
I |
Wheel Base (W/B) |
1244 |
|
J |
Reach |
450 |
|
K |
Stack Height |
668 |
|
L |
Fork Length (F/K) |
540 |
|
M |
Fork Offset |
58 |
|
N |
Trail |
85 |
|
|
Stand Over Height |
700 |
|
|
User Body Height (Range) |
1650-1850 |
